Water level indicators & water level meters
Water level meters measure the depth to water in wells, boreholes and anywhere else where water depth measuring is desired.
Our water level meter range are well-made, easy to use and they read accurately to the millimetre. The reels come with a robust carrying handle, and the probe sits securely in a frame mount.
NZ customers - buy Water Level Meters online today
The probe has a gap between the electrodes. When contact is made with water, the circuit is completed, activating the buzzer and the light. The water level is determined by taking a reading from the measuring tape at the top of the well-casing or borehole.
Settings
The unit comes with three settings; Off, Test and Operation.
Off is the setting to leave on normally.
Test (I) is to confirm the unit is operating correctly and receiving power from the 9V battery. No water is required for the test. If operating correctly, you will see the voltage meter move to the red zone. The light and buzzer do not operate during the test.
Operation (II) is the normal operating mode to use when determining the water level.

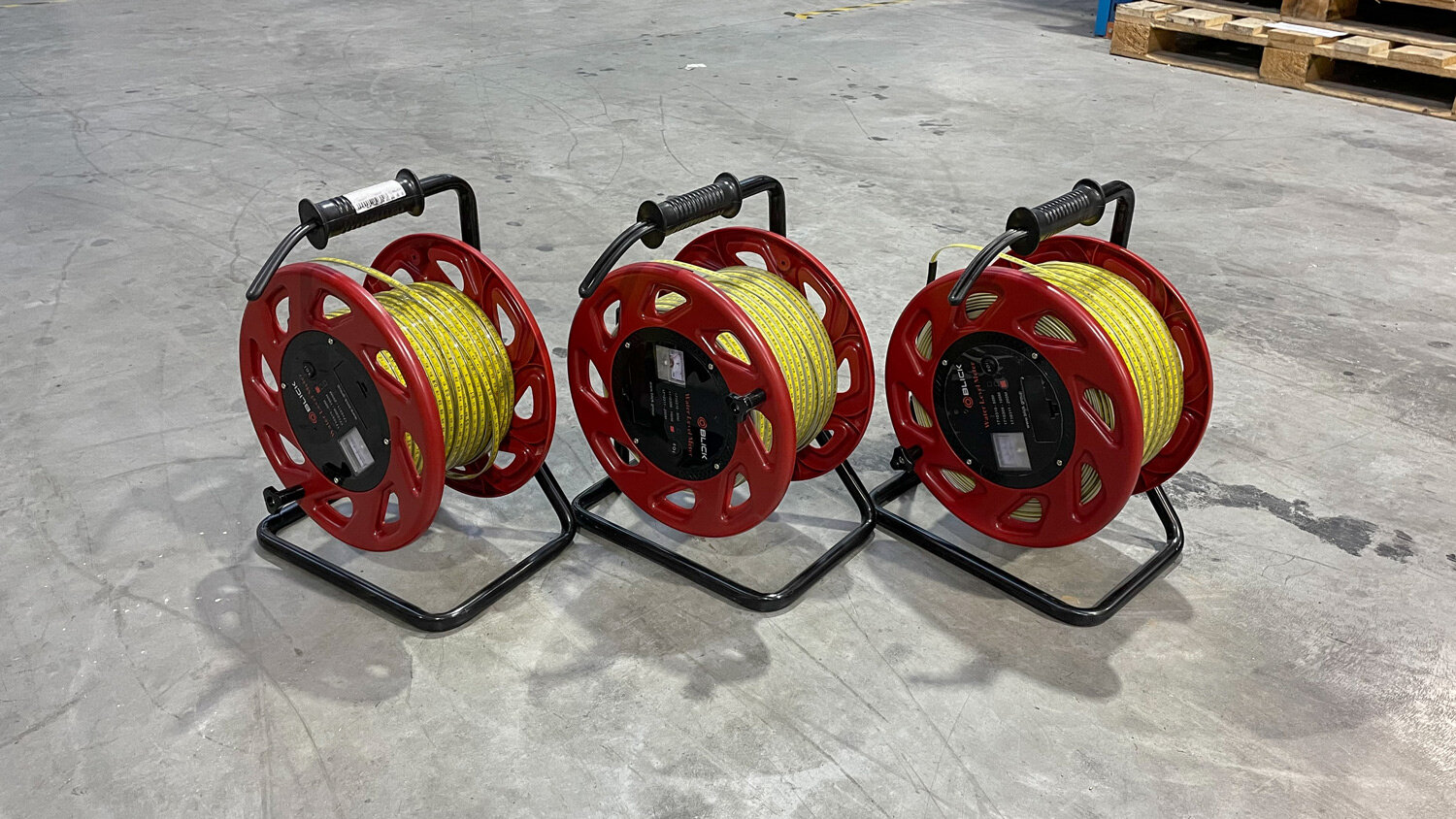

Standard length options for reel
50m Water Level Meter
100m Water Level Meter
200m Water Level Meter
Other sizes up to 700m available on request
Specifications
Ruler cable width 10.4mm, PE coated.
Probe diameter: 13.6mm, length 225mm.
Reel: ABS
Frame: Steel
Battery required: 9V (not provided)
Conductor Material: Multi stranded fine copper wire following VDE 0295 Class 5
Outer Jacket: PE Sheathed Transparent
Insulation resistance: > 200Mohm x km
Fire resistance: Following IEC 60332-1
Voltage Rating: 300 V / 300 V
Temperature Range: -40°C to +90°C
Test Voltage: 2000 V
Water level meters:
The must-have piece of equipment for your water bore project.
