Highly reactive, sticky clay causes reamer balling, thick cuttings beds, and stuck pipe. This guide covers reamer selection, the right fluid system, and the pumping ratios that make the difference.
The Challenge
Reactive clay causes reamers to ball up, creates thick cuttings beds that stick to drill pipe, causes clay swelling that squeezes the pipe, and risks pipe sticking during installation. Most experienced drillers know the tell — roll a clump of damp clay between your hands; if it rolls out to pencil thickness, it will swell and react.
The Approach

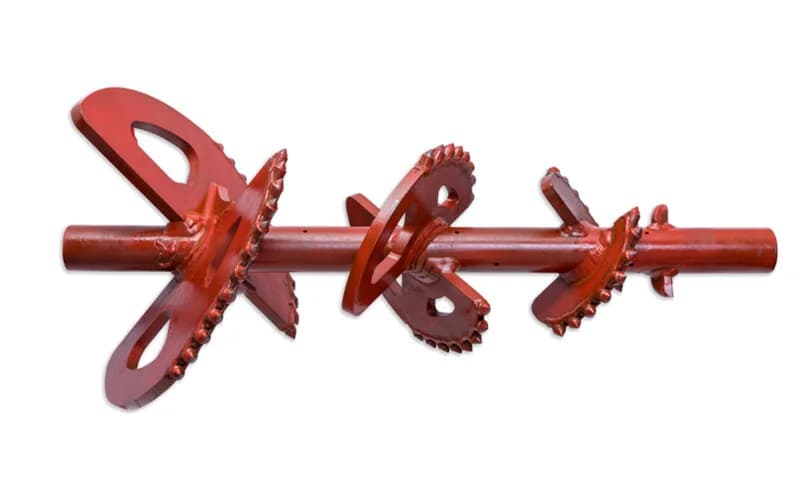

Three tools solve reactive clay: an effective reamer (the Tornado cuts incrementally larger on each blade, pumping slurry through large mixing holes), a targeted fluid system (Clay Dissolve breaks down clay rapidly, Clay Stop PHPA wraps particles to prevent water interaction, Torque Down reduces adhesion, Detergent wets clay surfaces, Carry Flow provides suspension for larger particles), and higher pumping ratios — reactive clay typically requires 5:1 fluid-to-spoil versus 3:1 for unreactive formations.
The Outcome
With the right reamer, fluid chemistry, and pump volumes, reactive clay bores complete on schedule. Clay Dissolve and Clay Stop together prevent the two primary failure modes — bit balling from dispersed clay and swelling from water contact — while Torque Down and Detergent keep tooling clean and moving.
